LED linear high bay light 150w

100

Description

Patent housing design with perfect heat dissipation.Different beam angle 120°*120°, 60°*120°, 90°*120°.Two mounting type:suspending mounting and bracket mounting for option.Simple and pretty appearance, exclusive high-end products. Surely will bring you incomparable refreshing experience.

Highlights

High efficiency 160-170lm/w, supper bright
Long lifespan, 5-7 years warranty with Sosen & Mean Well driver
DALI, ZigBee, motion sensor, and 1-10V dimmable are available
CE, RoHS,SAA,DLC, ETL certificates approved.

Ask for A Quote Add to Inquiry Cart

Specification

Product Dimension

User Manual

Application Cases

Product specification
Model No.	SW-L500-W150
Rated Power	150W
Input Voltage	AC100-277V, 50/60Hz, 0.45A(at 220v)； 347/480V AC for option
PF:	>0.97
IP Grade:	IP65
THD:	10%（at 230v, 50Hz)
Surge protection:	L/N-PE: 6KV, L-N: 4KV; 20KV version is for option.
LED Parameters
LED chip	SMD3030 LED
Light Efficiency	140-150lm/w
Color Temperature	2700-7000k
CRI	>70Ra or 80Ra
Beam Angle	120°x120°; 60°x100°；30°x100°
Mechanical Specification
Body Material	Aluminum
Lens Material	PC lens
Body color	White/grey
Operating Temperature	-35℃ – 50℃
Net W./Gross W	3.5KGS / 4.4KGS(one piece)
Packing size	39x35x17CM, One piece in one carton
Warranty	5-7 years warranty
Certificates	CE, RoHS, SAA, ETL, DLC

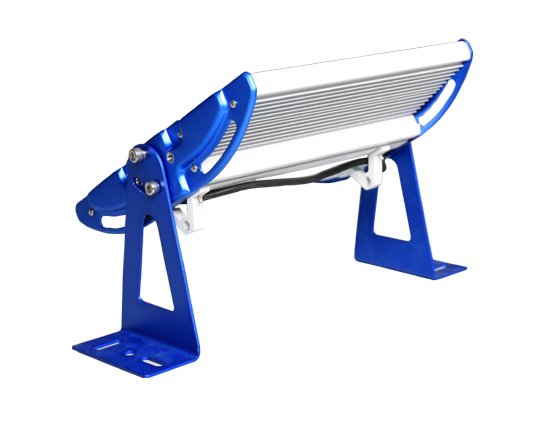

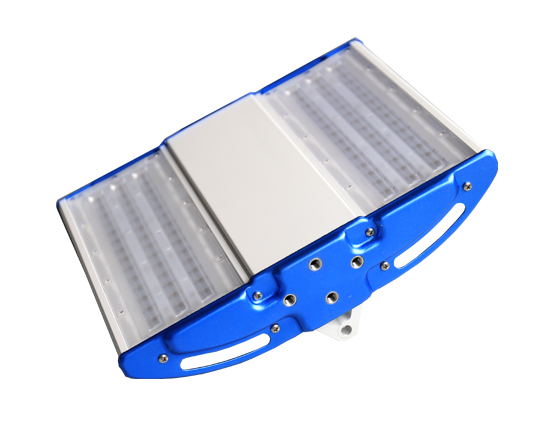

100w linear high bay light

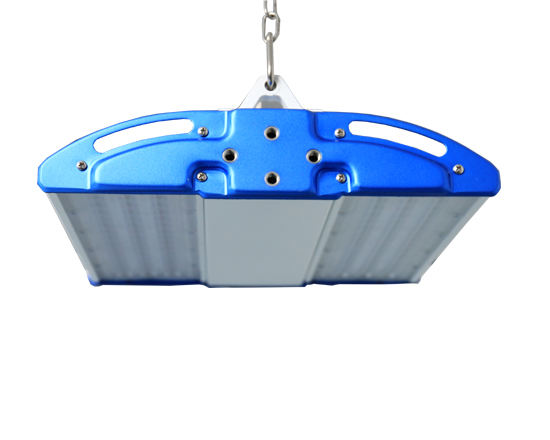

linear led high bay light

sensor L500

3 拷贝SMALL

100W SIZE

Warning:

Before installation or wiring the lamps, please make sure the power is switched off;
Before cleaning or repairing the lamp, please make sure the power is switched off;
The lamp body will be very hot while working, do not touch it with your hand.

QQ图片20211214114103

Application

(1). Warehouse,factory and workshops;
(2). Highway toll station and gas station;
(3). Exhibition hall and supermarket;
(4). Gymnasium and supermarket;
(5). Residential area, etc.

application linear high bay
