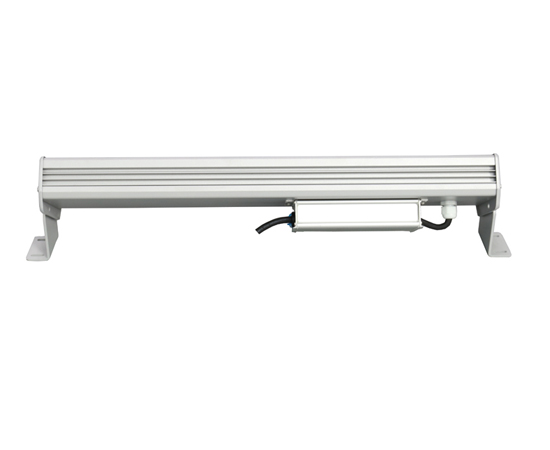

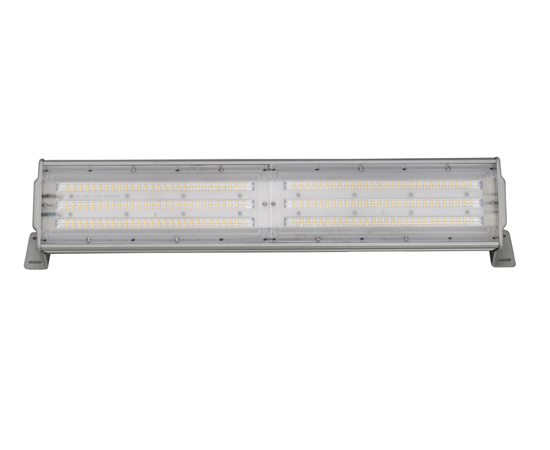

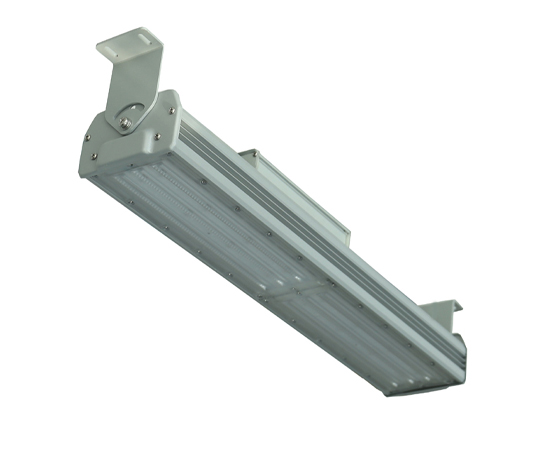

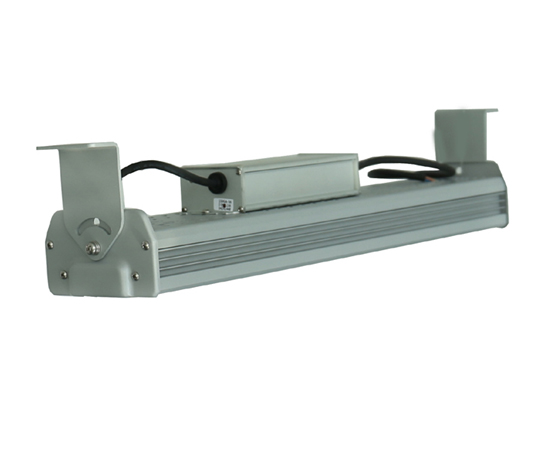

LED linear high bay light 100w

100

Description

Patent housing design with perfect heat dissipation.Different beam angle 120°x120°; 60°x100°；30°x100°.Two mounting type:suspending mounting and bracket mounting for option.Simple and pretty appearance, exclusive high-end products. Surely will bring you incomparable refreshing experience.

Highlights

High light efficiency 140-150lm/w
Long lifespan, 5-7 years warranty with Sosen & Mean Well driver
CE, RoHS, SAA,DLC, ETL certificates approved.
DALI, ZigBee, motion sensor, and 1-10V dimmable are available

Ask for A Quote Add to Inquiry Cart

Specification

Product Dimension

User Manual

Application Cases

Product specification
Model No.	SW-L400B-W100
Rated Power	100W
Input Voltage	AC100-277V, 50/60Hz, 1.14A(at 220v)； 347/480V AC for option
PF:	>0.97
IP Grade:	IP65
THD:	10%（at 230v, 50Hz)
Surge protection:	L/N-PE: 6KV, L-N: 4KV; 20KV version is for option.
LED Parameters
LED chip	SMD3030 LED
Light Efficiency	140-150lm/w
Color Temperature	2700-7000k
CRI	>70Ra or 80Ra
Beam Angle	120°x120°; 60°x100°；30°x100°
Mechanical Specification
Body Material	Aluminum
Lens Material	PC lens
Body color	grey
Operating Temperature	-35℃ – 50℃
Net W./Gross W	2.9KGS（1PCS）/ 6.5KGS（2PCS)
Packing size	633016cm(2PCS)
Warranty	5-7 years warranty
Certificates	CE, RoHS, SAA, ETL

3 拷贝 1

L400 2

L400

4 拷贝

SIZE 100W

Warning:

Before installation or wiring the lamps, please make sure the power is switched off;
Before cleaning or repairing the lamp, please make sure the power is switched off;
The lamp body will be very hot while working, do not touch it with your hand.

INSTALLATION

Linear led high bay light widely used inwarehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.

APPLICATION l400b
