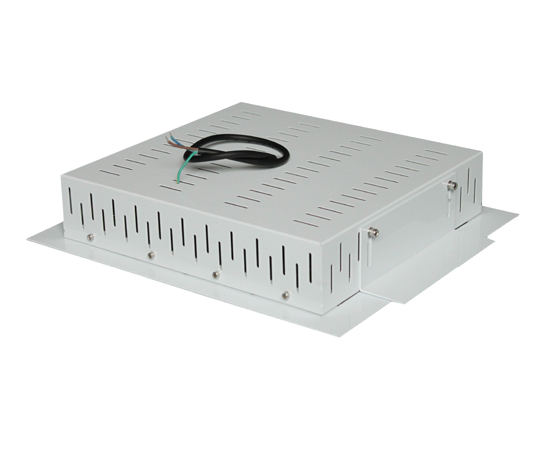

Using high quality 3030 chips, LM-80 report and IES data available.The whole lamp with the powder coating is brighter, without fading and corrosion; Built-in light module, easy maintenance and low maintenance costs. Dust-proof and waterproof, IP65.
| Product specification | |
| Model No. | SW-CP001-W240 |
| Rated Power | 240W |
| Input Voltage | AC100-277V, 50/60Hz, 0.45A(at 230v)；347/480V AC for option |
| PF: | >0.97 |
| IP Grade: | IP65 |
| THD: | 10%（at 230v, 50Hz) |
| Surge protection: | L/N-PE: 10KV, L-N: 6KV; 20KV version is for option. |
| LED Parameters | |
| LED chip | SMD3030 LED |
| Light Efficiency | 150-160lm/w or 170-180Lm/W |
| Color Temperature | 2700-7000k |
| CRI | >70Ra or 80Ra |
| Beam Angle | 60°, 90° |
| Mechanical Specification | |
| Body Material | Aluminum |
| Lens Material | PC lens |
| Body color | white |
| Operating Temperature | -35℃ – 50℃ |
| Net W./Gross W | 8.5KGS /10.0KGS(one piece) |
| Packing size | 40x60x20CM, One piece in one carton |
| Warranty | 5 years warranty |
| Certificates | CE, RoHS, SAA,LM79,LM80 |
Features:
1.CE&ROHS certified
2.Low power consumption , high luminous efficiency and energy saving
3. Easy to install and use.
4.High efficiency,high accuracy,and long-life constant current LED power supply,the efficiency can reach as high as 91%
5.No risk of mercury emission, No UV or RF interfcernce, No mercury or lead , environmental protection
6.High heat conductivity, low luminous decay, pure light color and no ghosting.
7.Integrative design for heat sink and housing; The LED is closely connected to the surface.
The heat From the LED is removed through the heat dissipation wing and also by air ventilation.
8.The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful.
9.Using high quality aluminum for production,fine workmanship,elegant appearance10.Recommend the use of warm white and white.Long life span with 50,000 hrs.
Led canopy light widely used in Gas Station, Shopping Mall, Garage, Station,Workshops, Factories, Warehouse, Storehouses,
Toll stations, Supermarkets, Exhibition halls, Gymnasiums, Square,and some other places where need lighting.
Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.
One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.
Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.
Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
