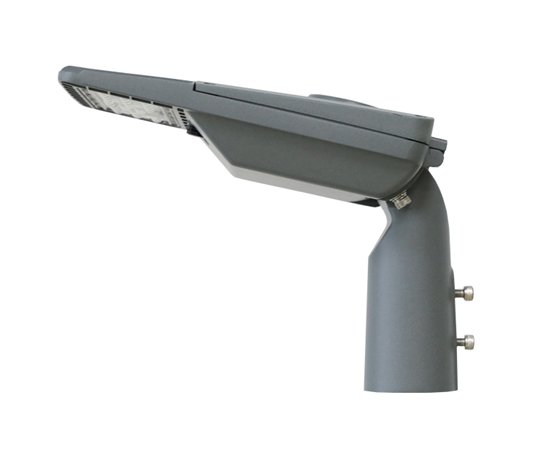

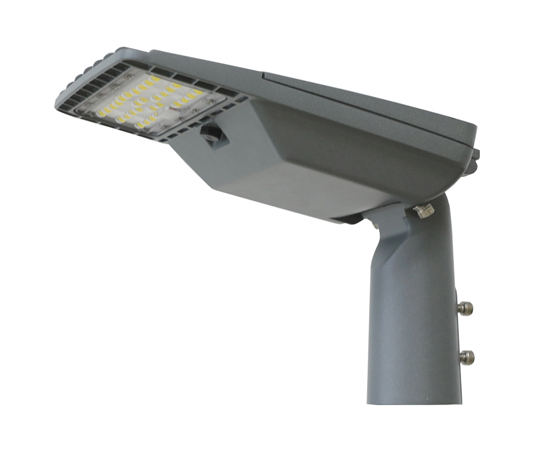

This is our new module street light SL207 published in 2023, which can do 30w-150w. Compared with the old SL307, the biggest feature of the new model is high lumens and high light efficiency, which can reach 165-180Lm/W with Lumileds 5050 leds. Multiple installation:Both vertical and horizontal installation are available Warranty: 5 years
| Product specification | |
| Model No. | SW-SL207 |
| Rated Power | 30w 50w 60w |
| Input Voltage | AC100-277V, 50/60Hz |
| PF: | >0.97 |
| IP Grade: | IP67 |
| THD: | <10%(at 230v, 50Hz) |
| Surge protection: | L/N-PE: 6KV, L-N: 4KV; 10/20KV version is for option. |
| LED Parameters | |
| LED chip | SMD5050 LED |
| Light Efficiency | 165-180lm/w |
| Color Temperature | 2700-7000k |
| CRI | >70Ra or 80Ra |
| Beam Angle | Type 2, Type 3, Type 4 |
| Mechanical Specification | |
| Body Material | Aluminum |
| Lens Material | PC lens |
| Body color | Grey |
| Operating Temperature | -35℃ – 50℃ |
| Net W./Gross W | 2.8KGS /3.3KGS(one piece) |
| Packing size | 39x29x17CM, One piece in one carton |
| Warranty | 5 years warranty |
| Certificates | CE, RoHS, IP67, IK10, TM21, LM79, LM80 |
Warning:
Led street light widely used in street, highway, garden, pavement, park, residential areas, industrial areas,
etc.
Tell us your needs and our professional in-house engineers will give you professional lighting solutions including specific parameters which is more than satisfaction.
One-stop shop for your lighting projects; Lamp body, lighting performance, material of lights,etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.
Time is money. We are deeply aware of what time means to your business. Standard orders are shipped within 1 week from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.
Each and every light is backed up with long warranty period of 5-7 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
